Specifying Dynamic Properties

Each predefined QML type has a set of predefined properties that you can specify values for. You can add custom properties that would not otherwise exist for a particular type. You bind the properties to dynamic expressions to define global properties for an object that can be read by other objects. For example, you can specify global properties for the root object that you can use in the child objects.

For example, to specify spacing between UI elements, you could define a margin for an object of a QML type that does not have a margin property, and then use bindings to refer to the value of the margin property from other objects.

Similarly, you can add custom properties for your own QML types that are based on the predefined types.

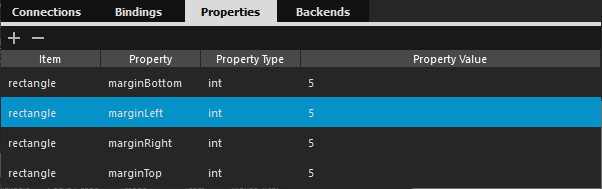

You can add properties for objects in the Connections view, 特性 tab.

To add properties for an object:

1. 选择 View > Views > Connections View > 特性 .
2. Select the ( Add ) button to add a dynamic property for the currently selected item. The item ID is displayed in the Item column.
3. Double-click the value in the Property column to give a name to the property. Property names must begin with a lower case letter and can only contain letters, numbers, and underscores. JavaScript reserved words are not valid property names.
4. Double-click the value in the 特性类型 column to specify the type of the property .
5. Double-click the value in the Property Value column to specify the value of the property.

Right-click a property and select Open Binding Editor in the context menu to bind the value of the property to that of another one or to data accessible in the application in Binding Editor 。更多信息，见 Setting Bindings .

The properties you add for a QML type are displayed in the 特性 view when you select a component of that type in Navigator or Form Editor .

For more information about setting property values in the 特性 view, see Specifying Item Properties .

For an example of using custom properties in an application, see 创建移动应用程序 .

Supported Property Types

The following table describes the supported property types:

Type	描述
alias	Property alias that holds a reference to another property
bool	Binary true or false value
color	Color value that can be specified by using an SVG color name, such as "red", "green", or "lightsteelblue", or a hexadecimal triplet or quad in the form "#RRGGBB" and "#AARRGGBB", respectively. For example, the color red corresponds to a triplet of "#FF0000" and a slightly transparent blue to a quad of "#800000FF". In addition, you can use the following Qt functions: Qt.rgba() , Qt.hsva() , Qt.hsla() , Qt.darker() , Qt.lighter() ，和 Qt.tint() .
int	Whole integer number, such as 0, 10, or -20
real	带小数点的数字
string	自由形式文本字符串
url	Resource locator, such as a file name. It can be either absolute, ( http://qt-project.org ), or relative ( pics/logo.png ). A relative URL is resolved relative to the URL of the parent component.
variant	Generic property type. For example, variant properties can store numbers, strings, objects, arrays, and functions.
