创建基于 Qt Widgets 的应用程序

This tutorial describes how to use Qt Creator to create a small Qt application, Text Finder. It is a simplified version of the Qt UI Tools Text Finder Example . The application user interface is constructed from Qt widgets by using Qt Designer. The application logic is written in C++ by using the code editor.

Creating the Text Finder Project

1. 选择 File > New File or Project > 应用程序 (Qt) > Qt Widgets Application > Choose .

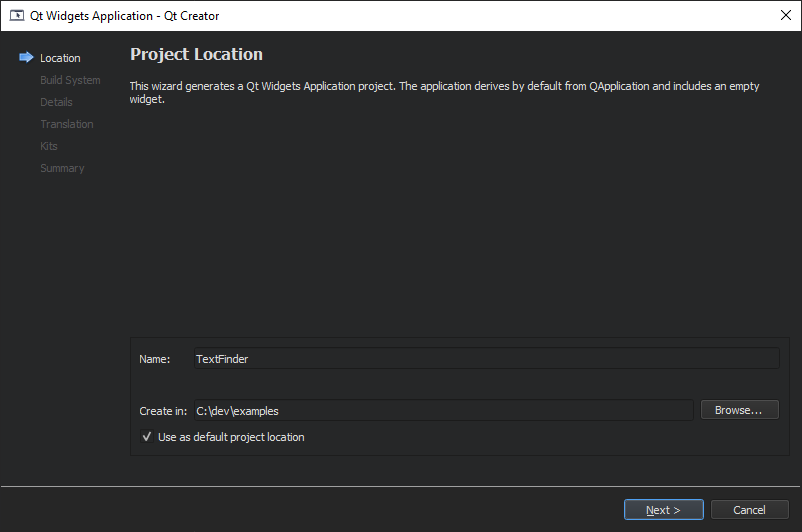

   The Introduction and Project Location dialog opens.



2. 在 Name field, type TextFinder .
3. 在 Create in field, enter the path for the project files. For example, C:\Qt\examples , and then select 下一 (on Windows and Linux) or Continue (on macOS).

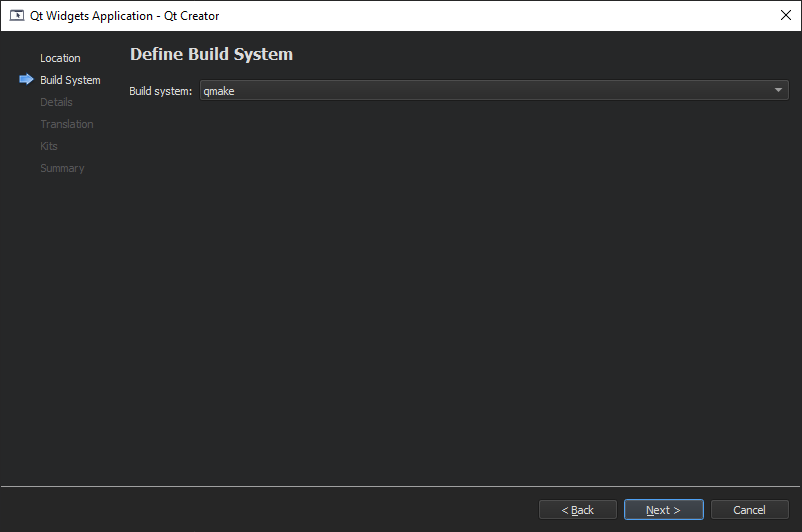

   The Define Build System dialog opens.



4. 在 Build system field, select the build system to use for building and running the project: qmake , CMake ，或 Qbs .

   The Class Information dialog opens.



5. 在 Class name field, type TextFinder as the class name.
6. 在 Base class list, select QWidget as the base class type.

   注意： The Header file , 源文件 and Form file fields are automatically updated to match the name of the class.

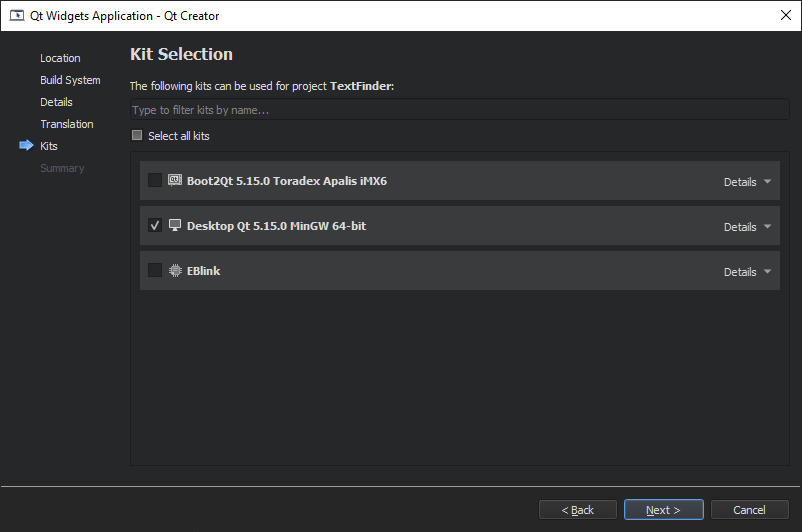

   The Kit Selection dialog opens.



7. Select build and run kits for your project, and select 下一 or Continue .
8. 选择 下一 or Continue .

   The Project Management dialog opens.



9. Review the project settings, and select Finish (on Windows and Linux) or Done (on macOS) to create the project.

注意： The project opens in the Edit mode, and these instructions are hidden. To return to these instructions, open the Help 模式。

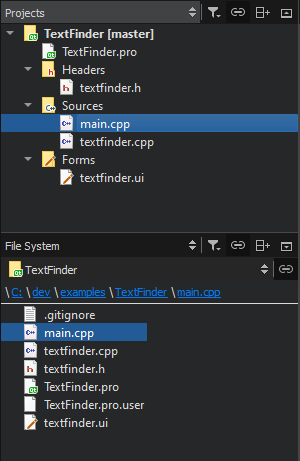

The TextFinder project now contains the following files:

• main.cpp
• textfinder.h
• textfinder.cpp
• textfinder.ui
• textfinder.pro

The .h and .cpp files come with the necessary boiler plate code. The .pro file is complete.

Filling in the Missing Pieces

Begin by designing the user interface and then move on to filling in the missing code. Finally, add the find functionality.

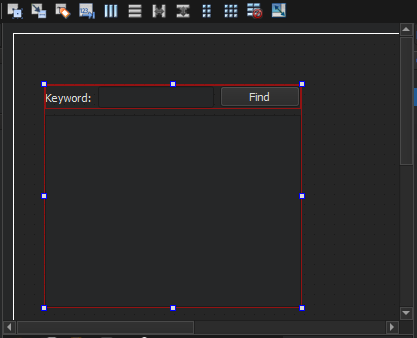

Designing the User Interface

1. 在 Editor mode, double-click the textfinder.ui file in the Projects view to launch the integrated Qt Designer.
2. Drag and drop the following widgets to the form:
   • Label ( QLabel )
   • Line Edit ( QLineEdit )
   • Push Button ( QPushButton )



   注意： To easily locate the widgets, use the search box at the top of the Sidebar . For example, to find the Label widget, start typing the word label .



3. Double-click the Label widget and enter the text Keyword .
4. Double-click the Push Button widget and enter the text Find .

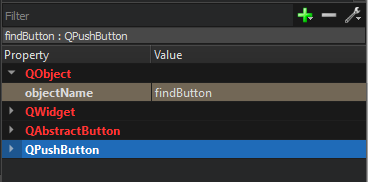

5. 在 特性 view, change the objectName to findButton .



6. Press Ctrl+A (or Cmd+A ) to select the widgets and select Lay out Horizontally (or press Ctrl+H on Linux or Windows or Ctrl+Shift+H on macOS) to apply a horizontal layout ( QHBoxLayout ).



7. Drag and drop a 文本编辑 widget ( QTextEdit ) to the form.
8. Select the screen area, and then select Lay out Vertically (or press Ctrl+L ) to apply a vertical layout ( QVBoxLayout ).



   Applying the horizontal and vertical layouts ensures that the application UI scales to different screen sizes.

9. To call a find function when users select the Find button, you use the Qt signals and slots mechanism. A signal is emitted when a particular event occurs and a slot is a function that is called in response to a particular signal. Qt widgets have predefined signals and slots that you can use directly from Qt Designer. To add a slot for the find function:
   • Right-click the Find button to open a context-menu.
   • 选择 Go to Slot > clicked() , and then select OK .

     A private slot, on_findButton_clicked() , is added to the header file, textfinder.h and a private function, TextFinder::on_findButton_clicked() , is added to the source file, textfinder.cpp.

10. Press Ctrl+S (or Cmd+S ) to save your changes.

For more information about designing forms with Qt Designer, see the Qt Designer 手册 .

Completing the Header File

The textfinder.h file already has the necessary #includes, a constructor, a destructor, and the Ui object. You need to add a private function, loadTextFile() , to read and display the contents of the input text file in the QTextEdit .

1. 在 Projects view in the Edit view , double-click the textfinder.h file to open it for editing.
2. Add a private function to the private section, after the Ui::TextFinder pointer, as illustrated by the following code snippet:

   private slots:

   void

   on_findButton_clicked();

   private

   :
   Ui

   ::

   TextFinder

   *

   ui;

   void

   loadTextFile();


Completing the Source File

Now that the header file is complete, move on to the source file, textfinder.cpp.

1. 在 Projects view in the Edit view, double-click the textfinder.cpp file to open it for editing.
2. Add code to load a text file using QFile , read it with QTextStream , and then display it on textEdit with QTextEdit::setPlainText (). This is illustrated by the following code snippet:

   void TextFinder::loadTextFile()
   {


   QFile


    inputFile(

   ":/input.txt"

   );
   inputFile

   .

   open(


   QIODevice



   ::

   ReadOnly);


   QTextStream


    in(

   &

   inputFile);


   QString


    line

   =

    in

   .

   readAll();
   inputFile

   .

   close();
   ui

   -


   >

   textEdit

   -


   >

   setPlainText(line);


   QTextCursor


    cursor

   =

    ui

   -


   >

   textEdit

   -


   >

   textCursor();
   cursor

   .

   movePosition(


   QTextCursor



   ::

   Start

   ,



   QTextCursor



   ::

   MoveAnchor

   ,


   1

   );
   }


3. 要使用 QFile and QTextStream , add the following #includes to textfinder.cpp:

   #include <QFile>
   #include <QTextStream>


4. 对于 on_findButton_clicked() slot, add code to extract the search string and use the QTextEdit::find () function to look for the search string within the text file. This is illustrated by the following code snippet:

   void TextFinder::on_findButton_clicked()
   {


   QString


    searchString

   =

    ui

   -


   >

   lineEdit

   -


   >

   text();
   ui

   -


   >

   textEdit

   -


   >

   find(searchString

   ,



   QTextDocument



   ::

   FindWholeWords);
   }


5. Once both of these functions are complete, add a line to call loadTextFile() in the constructor, as illustrated by the following code snippet:

   TextFinder::TextFinder(QWidget *parent)
   :


   QWidget


   (parent)

   ,

    ui(

   new

    Ui

   ::

   TextFinder)
   {
   ui

   -


   >

   setupUi(

   this

   );
   loadTextFile();
   }


The on_findButton_clicked() slot is called automatically in the uic generated ui_textfinder.h file by this line of code:

QMetaObject::connectSlotsByName(TextFinder);


Creating a Resource File

You need a resource file (.qrc) within which you embed the input text file. The input file can be any .txt file with a paragraph of text. Create a text file called input.txt and store it in the textfinder folder.

To add a resource file:

1. 选择 File > New File or Project > Qt > Qt Resource File > Choose .



   The Choose the Location dialog opens.



2. 在 Name field, enter textfinder .
3. 在 Path field, enter C:\Qt\examples\TextFinder , and select 下一 or Continue .

   The Project Management dialog opens.



4. 在 Add to project field, select TextFinder.pro and select Finish or Done to open the file in the code editor.
5. 选择 Add > Add Prefix .
6. 在 Prefix field, replace the default prefix with a slash (/).
7. 选择 Add > Add Files , to locate and add input.txt.



Compiling and Running Your Program

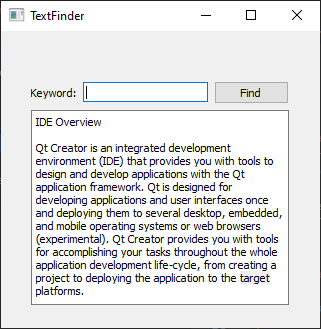

Now that you have all the necessary files, select the button to compile and run your program.
